Lung Simulators can vary in complexity based upon the application. We offer a range of products that cover the basic needs user and the special needs required for more extensive service.
Lung Simulator LS-2000A / LS2000I Adult and Infant		Test Lung LS-1000E		Test Lung - Infant EXPMT-2000

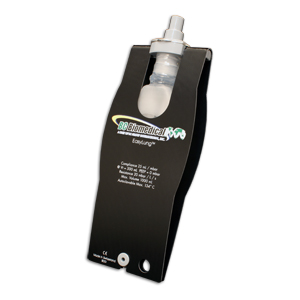

The LS-2000 is an extremely simple concept; as small and portable as a conventional test lung but incorporating an adjustable compliance and a variable resistance feature. The LS-2000 offers a leakage control valve to verify the patient-trigger-function or the leak compensation of a respiratory system. Choose between the Adult (LS-2000A) and the Infant Version (LS-2000I). The LS-2000 is ideal for demonstrating and testing all respiratory and anesthesia systems. It works with the TSI Certifier FA©, Certifier FA PLUS©, the Puritan Bennet PTS-2000 and any other ventilator tester. This test lung is manufactured in accordance with the CE requirements. Items Included with LS-2000 Unit: • BC20-30112 Carrying Case • BC80-00454 Retainer Clip • BC80-00455 Side Panel • BC80-00456 Compliance Slide • BC80-00457 Inlet Valve • BC80-00558 Silicon Bag • BC80-00459 Tension Nut		The BC Biomedical LS-1000E EasyLung is an affordable, versatile general purpose test lung providing a broad spectrum of benefits to the respiratory care field. It is ideal for ventilator manufacturers validating the safety of their products, for ventilator training and for biomedical engineers performing general service procedures. The EasyLung combines singular design with high-quality, replaceable parts. Its unique double-conus multi-connector also ensures a direct connection to all tubing systems. Items Included with LS-2000 Unit: • Operator's Manual		The TestLung Infant is the ideal tool to test neonatal and infant ventilators. Volume: 20 mL @ PEEP = 0mbar; PInsp = 30 mbar Compliance: 0.7 mL/mbar @ Vt 20 mL Dimensions: 45 mm x 150 mm Weight: 25 g Material: Silicone
Test Lung - Adult BC20-40200		Test Lung - Infant 10107		Lung Simulator - SmartLung 2000 BC20-40200
This is the Adult Test Lung. Perfect for testing ventilators, resuscitators, etc. • Reusable • 1-liter capacity • Heavy wall Neoprene, for testing ventilators, resuscitators, etc. • 22mm I.D. connection • Not for patient use • Green Neoprene • Not manufactured with Natural Rubber Latex 1 Clean by wiping the exterior with a soft cloth, water and a mild detergent or liquid soap 2 Rinse exterior (do not allow water to enter the bag) 3 Allow to air dry.				With the new SmartLung 2000 you can test if a ventilator is in compliance with the following standards: IEC 60601-2-12,IEC 60601-2-13 and EN 794-3. • 2000-ml-bag • Applicable volume from 0 to 1000 mL • Testing according to IEC standards (ventilators and anaesthesia machines) • The only test lung on the market that covers all the necessary test points • Outstanding features for patient simulations in ventilator training With the SmartLung adult, you can control the function of a ventilator over all norms. The SmartLung 2000 has the same size as ordinary test lungs, but it comes with an adjustable compliance and an adjustable resistance from 5 up to 200 mbar/L/s. The leak-compensation of a ventilator can be tested, thanks to the controllable leakage. It is also possible to test the patient-trigger-function with the SmartLung 2000. The SmartLung 2000 is the best tool for testing your ventilator and anesthesia devices and an ideal addition to the flow- and pressure measurement device FlowAnalyser. By simply using the slider, the test lung can simulate different degrees of lung-hardness according to different standards and a simple twist of the connector is all it takes to simulate different airway-resistances.
